MAX1616, MAX1615 - Low-Power Linear Regulators

Maxim Integrated

The MAX1616 by Maxim Integrated is a Low-Power Linear Regulators. Below is the official datasheet preview.

📥 Download Datasheet

MAX1616 Low-Power Linear Regulators by Maxim Integrated - Datasheet Preview — Official preview page of the **MAX1616** Low-Power Linear Regulators datasheet (Maxim Integrated).

Datasheet Details

Part number	MAX1616, MAX1615
Manufacturer	Maxim Integrated
File Size	99.85 KB
Description	Low-Power Linear Regulators
Datasheet	MAX1615_MaximIntegratedProducts.pdf
Note	This datasheet PDF includes multiple part numbers: MAX1616, MAX1615. Please refer to the document for exact specifications by model.

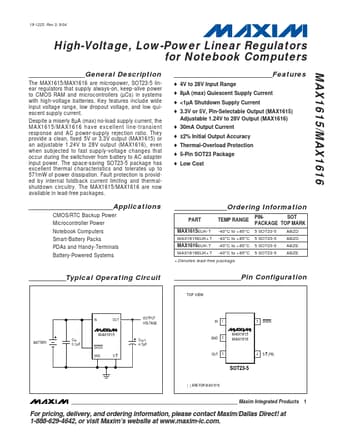

Additional preview pages of the MAX1616 datasheet.

MAX1616 Product details

Description

The MAX1615/MAX1616 are micropower, SOT23-5 linear regulators that supply always-on, keep-alive power to CMOS RAM and microcontrollers (µCs) in systems with high-voltage batteries.

Features

include wide input voltage range, low dropout voltage, and low quiescent supply current. Despite a miserly 8µA (max) no-load supply current, the MAX1615/MAX1616 have excellent line-transient response and AC power-supply rejection ratio. They provide a clean, fixed 5V or 3.3V output (MAX1615) or an adjustable 1.24V to 28V output (MAX1616), even when subjected to fast supply-voltage changes that occur during the switchover from battery to AC adapter input power. The space-saving SOT23-5 package ha.
