MAX16128 - Load-Dump/Reverse-Voltage Protection Circuits

Maxim Integrated

The MAX16128 by Maxim Integrated is a Load-Dump/Reverse-Voltage Protection Circuits. Below is the official datasheet preview.

📥 Download Datasheet

MAX16128 Load-Dump/Reverse-Voltage Protection Circuits by Maxim Integrated - Datasheet Preview — Official preview page of the **MAX16128** Load-Dump/Reverse-Voltage Protection Circuits datasheet (Maxim Integrated).

Datasheet Details

Part number	MAX16128
Manufacturer	Maxim Integrated
File Size	1.06 MB
Description	Load-Dump/Reverse-Voltage Protection Circuits
Datasheet	MAX16128-MaximIntegrated.pdf

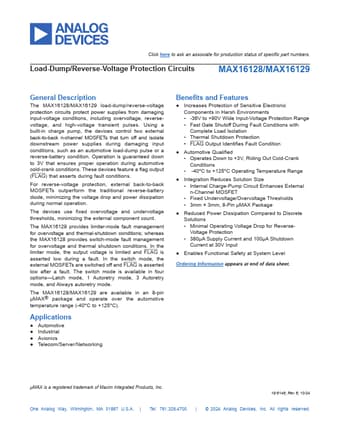

Additional preview pages of the MAX16128 datasheet.

MAX16128 Product details

Description

The MAX16128/MAX16129 load-dump/reverse-voltage protection circuits protect power supplies from damaging input-voltage conditions, including overvoltage, reversevoltage, and high-voltage transient pulses.

Features

Increases Protection of Sensitive Electronic Components in Harsh Environments.
-36V to +90V Wide Input-Voltage Protection Range.
Fast Gate Shutoff During Fault Conditions with Complete Load Isolation.
Thermal Shutdown Protection.
FLAG Output Identifies Fault Condition.
Automotive Qualified.
Operates Down to +3V, Riding Out Cold-Crank Conditions.
-40°C to +125°C Operating Temperature Range.
Integration Reduces Solution Size.
