MAX13335E - Dual Automotive Differential Audio Receivers

Maxim Integrated

The MAX13335E by Maxim Integrated is a Dual Automotive Differential Audio Receivers. Below is the official datasheet preview.

📥 Download Datasheet

MAX13335E Dual Automotive Differential Audio Receivers by Maxim Integrated - Datasheet Preview — Official preview page of the **MAX13335E** Dual Automotive Differential Audio Receivers datasheet (Maxim Integrated).

Datasheet Details

Part number	MAX13335E
Manufacturer	Maxim Integrated
File Size	1.36 MB
Description	Dual Automotive Differential Audio Receivers
Datasheet	MAX13335E-MaximIntegrated.pdf

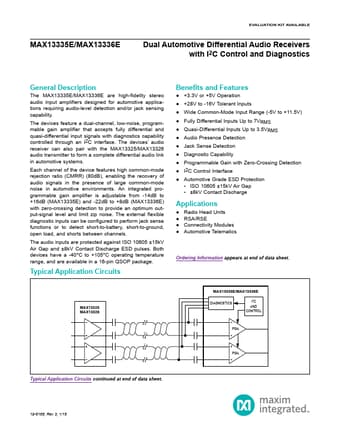

Additional preview pages of the MAX13335E datasheet.

MAX13335E Product details

Description

The MAX13335E/MAX13336E are high-fidelity stereo audio input amplifiers designed for automotive applications requiring audio-level detection and/or jack sensing capability.

Features

high common-mode rejection ratio (CMRR) (80dB), enabling the recovery of audio signals in the presence of large common-mode noise in automotive environments. An integrated programmable gain amplifier is adjustable from -14dB to +16dB (MAX13335E) and -22dB to +8dB (MAX13336E) with zero-crossing detection to provide an optimum output-signal level and limit zip noise. The external flexible diagnostic inputs can be configured to perform jack sense functions or to detect short-to-battery, short-to-gr.
