MAX1332 - (MAX1332 / MAX1333) True-Differential 12-Bit ADCs

Description

The MAX1332/MAX1333 2-channel, serial-output, 12-bit, analog-to-digital converters (ADCs) feature two true-differential analog inputs and offer outstanding noise immunity and dynamic performance.

Both devices easily interface with SPI™/QSPI™/MICROWIRE™ and standard digital signal processors (DSPs).

Features

  • 3Msps Sampling Rate (+5V, MAX1332).
  • 2Msps Sampling Rate (+3V, MAX1333).
  • Separate Logic Supply: +2.7V to +3.6V.
  • Two True-Differential Analog Input Channels.
  • Bipolar/Unipolar Selection Input.
  • Only 38mW (typ) Power Consumption.
  • Only 2µA (max) Shutdown Current.
  • High-Speed, SPI-Compatible, 3-Wire Serial Interface.
  • 2MHz Full-Linear Bandwidth.
  • 71.4dB SINAD and -93dB THD at 525kHz Input Frequency.
  • No Pipe.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
MAX133 3 Digit DMM Circuit Maxim
MAX13335E Dual Automotive Differential Audio Receivers Maxim Integrated
MAX13336E Dual Automotive Differential Audio Receivers Maxim Integrated
MAX130 3 Digit A/D Converters with Bandgap Refrence Maxim
MAX13000E Ultra-Low-Voltage Level Translators Maxim Integrated

Other Datasheets by Maxim Integrated (Analog Devices)

Part Number Description
MAX13325 Dual Automotive Audio Line Drivers
MAX13326 Dual Automotive Audio Line Drivers
MAX1330 12-/16-Bit DASs
MAX1333 (MAX1332 / MAX1333) True-Differential 12-Bit ADCs
MAX13330 Automotive DirectDrive Headphone Amplifiers

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

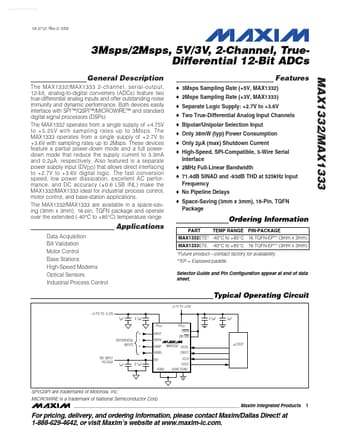

www.DataSheet4U.com 19-3712; Rev 0; 5/05 3Msps/2Msps, 5V/3V, 2-Channel, TrueDifferential 12-Bit ADCs General Description The MAX1332/MAX1333 2-channel, serial-output, 12-bit, analog-to-digital converters (ADCs) feature two true-differential analog inputs and offer outstanding noise immunity and dynamic performance. Both devices easily interface with SPI™/QSPI™/MICROWIRE™ and standard digital signal processors (DSPs). The MAX1332 operates from a single supply of +4.75V to +5.25V with sampling rates up to 3Msps. The MAX1333 operates from a single supply of +2.7V to +3.6V with sampling rates up to 2Msps. These devices feature a partial power-down mode and a full powerdown mode that reduce the supply current to 3.3mA and 0.2µA, respectively.
