DS2482-800 - 8-Channel 1-Wire Master

Name: DS2482-800
SKU: DS2482-800-1086340

Maxim Integrated

📥 Download Datasheet

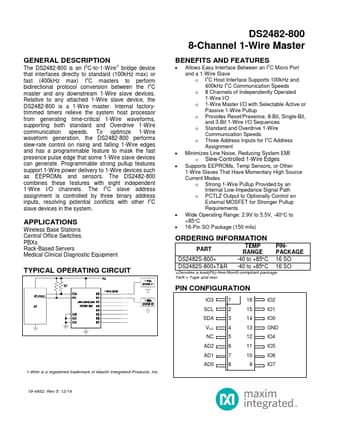

DS2482-800 Datasheet Preview — Preview of DS2482-800 PDF

Datasheet Details

Part number	DS2482-800
Manufacturer	Maxim Integrated
File Size	272.54 KB
Description	8-Channel 1-Wire Master
Datasheet	DS2482-800-MaximIntegrated.pdf

DS2482-800 Product details

Description

The DS2482-800 is an I2C-to-1-Wire bridge device that interfaces directly to standard (100kHz max) or fast (400kHz max) I2C masters to perform bidirectional protocol conversion between the I2C master and any downstream 1-Wire slave devices.

Features

support 1-Wire power delivery to 1-Wire devices such as EEPROMs and sensors. The DS2482-800 combines these features with eight independent 1-Wire I/O channels. The I2C slave address assignment is controlled b.
