DS2480B, DS2 - Serial 1-Wire Line Driver

Maxim Integrated Products

📥 Download Datasheet

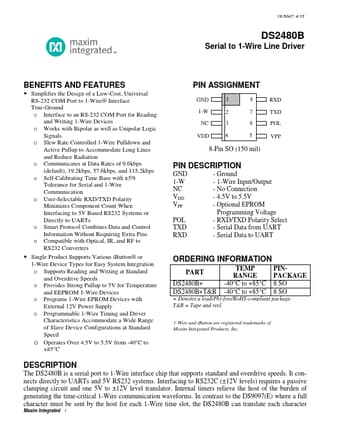

DS2480B Datasheet Preview — This datasheet PDF includes multiple part numbers: DS2480B, DS2. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	DS2480B, DS2
Manufacturer	Maxim Integrated Products
File Size	465.17 KB
Description	Serial 1-Wire Line Driver
Datasheet	DS2-480B.pdf
Note	This datasheet PDF includes multiple part numbers: DS2480B, DS2. Please refer to the document for exact specifications by model.

DS2480B Product details

Description

GND - Ground 1-W - 1-Wire Input/Output NC - No Connection VDD - 4.5V to 5.5V VPP - Optional EPROM Programming Voltage POL - RXD/TXD Polarity Select TXD - Serial Data from UART RXD - Serial Data to UART ORDERING INFORMATION PART DS2480B+ TEMP PIN- RANGE PACKAGE -40°C to +85°C 8 SO DS2480B+T&R -40°C to +85°C 8 SO + Denotes a lead(Pb)-free/RoHS-compliant package.T&R = Tape and reel.1-Wire and iButton are registered trademarks of Maxim Integrated Products, Inc.DESCRIPTION Th

Features

Simplifies the Design of a Low-Cost, Universal RS-232 COM Port to 1-Wire® Interface True-Ground o Interface to an RS-232 COM Port for Reading and Writing 1-Wire Devices o Works with Bipolar as well as Unipolar Logic Signals o Slew Rate Controlled 1-Wire Pulldown and Active Pullup to Accommodate Long Lines and Reduce Radiation o Communicates at Data Rates of 9.6kbps (default), 19.2kbps, 57.6kbps, and 115.2kbps o Self-Calibrating Time Base with ±5% Tolerance for Serial and 1-Wire Communi.
