DS1682 - Total-Elapsed-Time Recorder

Name: DS1682
SKU: DS1682-1086323

Maxim Integrated

📥 Download Datasheet

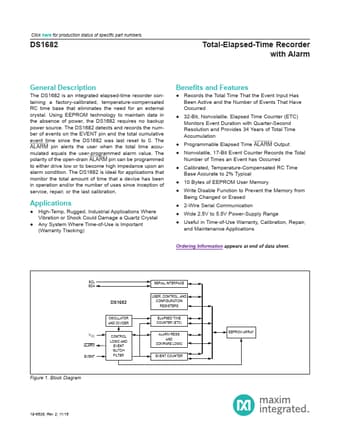

DS1682 Datasheet Preview — Preview of DS1682 PDF

Datasheet Details

Part number	DS1682
Manufacturer	Maxim Integrated
File Size	790.16 KB
Description	Total-Elapsed-Time Recorder
Datasheet	DS1682-MaximIntegrated.pdf

DS1682 Product details

Description

The DS1682 is an integrated elapsed-time recorder containing a factory-calibrated, temperature-compensated RC time base that eliminates the need for an external crystal.

Features

Records the Total Time That the Event Input Has Been Active and the Number of Events That Have Occurred.
32-Bit, Nonvolatile, Elapsed Time Counter (ETC) Monitors Event Duration with Quarter-Second Resolution and Provides 34 Years of Total Time Accumulation.
Programmable Elapsed Time ALARM Output.
Nonvolatile, 17-Bit Event Counter Records the Total Number of Times an Event has Occurred.
Calibrated, Temperature-Compensated RC Time Base Accurate to.
