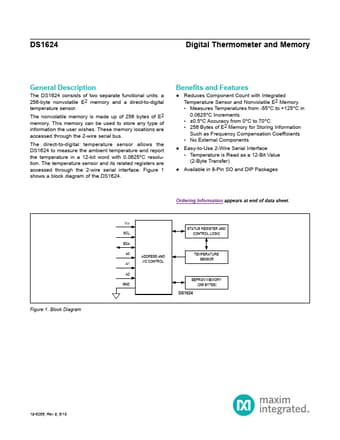

DS1624 Datasheet Preview — Preview of DS1624 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	DS1624
Manufacturer	Maxim Integrated
File Size	416.74 KB
Description	Digital Thermometer/Memory
Datasheet	DS1624-MaximIntegrated.pdf

DS1624 Product details

Description

The DS1624 consists of two separate functional units: a 256-byte nonvolatile E2 memory and a direct-to-digital temperature sensor.

Features

Reduces Component Count with Integrated Temperature Sensor and Nonvolatile E2 Memory.
Measures Temperatures from -55°C to +125°C in 0.0625°C Increments.
±0.5°C Accuracy from 0°C to 70°C.
256 Bytes of E2 Memory for Storing Information Such as Frequency Compensation Coefficients.
No External Components.
Easy-to-Use 2-Wire Serial Interface.
Temperature is Read as a 12-Bit Value (2-Byte Transfer).
Available in 8-Pin SO.
