DS1626 - High-Precision 3-Wire Digital Thermometer/Thermostat

Name: DS1626
SKU: DS1626-1460106

Maxim Integrated

📥 Download Datasheet

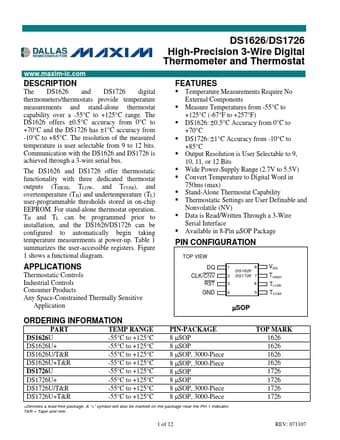

DS1626 Datasheet Preview — Preview of DS1626 PDF

Datasheet Details

Part number	DS1626
Manufacturer	Maxim Integrated
File Size	141.32 KB
Description	High-Precision 3-Wire Digital Thermometer/Thermostat
Datasheet	DS1626-MaximIntegrated.pdf

DS1626 Product details

Description

The DS1626 and DS1726 digital thermometers/thermostats provide temperature measurements and stand-alone thermostat capability over a -55°C to +125°C range.

Features

Temperature Measurements Require No External Components Measure Temperatures from -55°C to +125°C (-67°F to +257°F) DS1626: ±0.5°C Accuracy from 0°C to +70°C DS1726: ±1°C Accuracy from -10°C to +85°C Output Resolution is User Selectable to 9, 10, 11, or 12 Bits Wide Power-Supply Range (2.7V to 5.5V) Convert Temperature to Digital Word in 750ms (max) Stand-Alone Thermostat Capability Thermostatic Settings are User Definable and Nonvolatile (NV) Data is Read/Written Through a 3-Wire Serial Interfa.
