DS1135 - 3V 3-in-1 High-Speed Silicon Delay Line

Maxim Integrated

📥 Download Datasheet

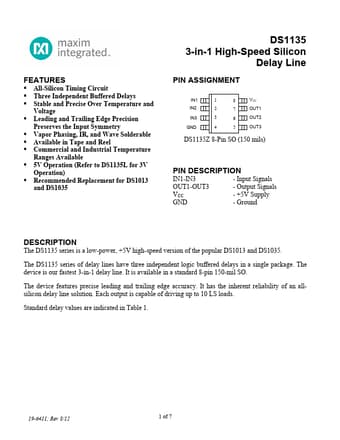

DS1135 Datasheet Preview — Preview of DS1135 PDF

Datasheet Details

Part number	DS1135
Manufacturer	Maxim Integrated
File Size	306.31 KB
Description	3V 3-in-1 High-Speed Silicon Delay Line
Datasheet	DS1135-MaximIntegrated.pdf

DS1135 Product details

Description

IN1-IN3 - Input Signals OUT1-OUT3 - Output Signals VCC - +5V Supply GND - Ground DESCRIPTION The DS1135 series is a low-power, +5V high-speed version of the popular DS1013 and DS1035. The DS1135 series of delay lines have three independent logic buffered delays in a single package.The device is our fastest 3-in-1 delay line.It is available in a standard 8-pin 150-mil SO.The device

Features

All-Silicon Timing Circuit.
Three Independent Buffered Delays.
Stable and Precise Over Temperature and Voltage.
Leading and Trailing Edge Precision Preserves the Input Symmetry.
Vapor Phasing, IR, and Wave Solderable.
Available in Tape and Reel.
Commercial and Industrial Temperature Ranges Available.
5V Operation (Refer to DS1135L for 3V Operation).
Recommended Replacement for DS1013 and DS1035 DS1135 3-in-1 High-Speed Silicon Delay Line PIN.
