MAX9242 - (MAX9242 - MAX9246) 21-Bit Deserializers

Maxim Integrated Products

The MAX9242 by Maxim Integrated Products is a (MAX9242 - MAX9246) 21-Bit Deserializers. Below is the official datasheet preview.

Datasheet Details

Part number	MAX9242
Manufacturer	Maxim Integrated Products
File Size	265.87 KB
Description	(MAX9242 - MAX9246) 21-Bit Deserializers
Datasheet	MAX9242_MaximIntegratedProducts.pdf

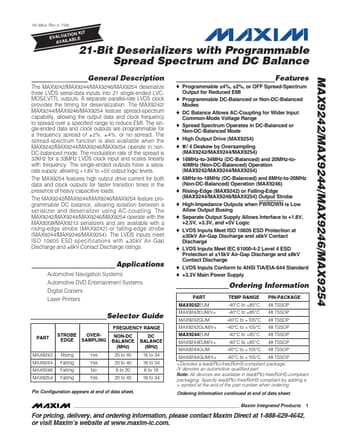

Additional preview pages of the MAX9242 datasheet.

The MAX9242/MAX9244/MAX9246 deserialize three LVDS serial-data inputs into 21 single-ended LVCMOS/ LVTTL outputs.

Programmable ±4%, ±2%, or OFF Spread-Spectrum Output for Reduced EMI.
Programmable DC-Balanced or Non-DC-Balanced Modes.
DC Balance Allows AC-Coupling for Wider Input Common-Mode Voltage Range.
Spread Spectrum Operates in DC-Balanced or Non-DC-Balanced Mode.
π / 4 Deskew by Oversampling (MAX9242/MAX9244).
16MHz-to-34MHz (DC-Balanced) and 20MHz-to40MHz (Non-DC-Balanced) Operation (MAX9242/MAX9244).
6MHz-to-18MHz (DC-Balanced) and 8MH.
