MAX9213, MAX9209 - Programmable DC-Balanced 21-Bit Serializers

Maxim Integrated

The MAX9213 by Maxim Integrated is a Programmable DC-Balanced 21-Bit Serializers. Below is the official datasheet preview.

Datasheet Details

Part number	MAX9213, MAX9209
Manufacturer	Maxim Integrated
File Size	583.72 KB
Description	Programmable DC-Balanced 21-Bit Serializers
Datasheet	MAX9209-MaximIntegrated.pdf
Note	This datasheet PDF includes multiple part numbers: MAX9213, MAX9209. Please refer to the document for exact specifications by model.
Additional preview pages of the MAX9213 datasheet.

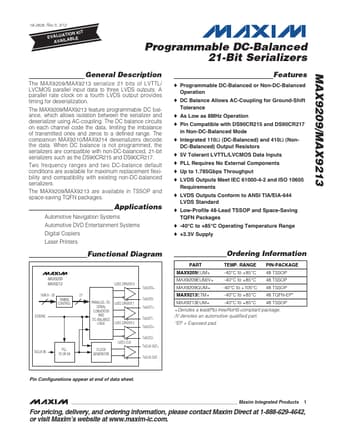

The MAX9209/MAX9213 serialize 21 bits of LVTTL/ LVCMOS parallel input data to three LVDS outputs.

o Programmable DC-Balanced or Non-DC-Balanced Operation o DC Balance Allows AC-Coupling for Ground-Shift Tolerance o As Low as 8MHz Operation o Pin Compatible with DS90CR215 and DS90CR217 in Non-DC-Balanced Mode o Integrated 110Ω (DC-Balanced) and 410Ω (Non- DC-Balanced) Output Resistors o 5V Tolerant LVTTL/LVCMOS Data Inputs o PLL Requires No External Components o Up to 1.785Gbps Throughput o LVDS Outputs Meet IEC 61000-4-2 and ISO 10605 Requirements o LVDS Outputs Conform to ANSI TIA/EIA-644 L.
