MAX9234 - (MAX9234 - MAX9238) DC-Balanced LVDS Deserializers

Maxim Integrated Products

The MAX9234 by Maxim Integrated Products is a (MAX9234 - MAX9238) DC-Balanced LVDS Deserializers. Below is the official datasheet preview.

📥 Download Datasheet

MAX9234 (MAX9234 - MAX9238) DC-Balanced LVDS Deserializers by Maxim Integrated Products - Datasheet Preview — Official preview page of the **MAX9234** (MAX9234 - MAX9238) DC-Balanced LVDS Deserializers datasheet (Maxim Integrated Products).

Datasheet Details

Part number	MAX9234
Manufacturer	Maxim Integrated Products
File Size	161.30 KB
Description	(MAX9234 - MAX9238) DC-Balanced LVDS Deserializers
Datasheet	MAX9234_MaximIntegratedProducts.pdf

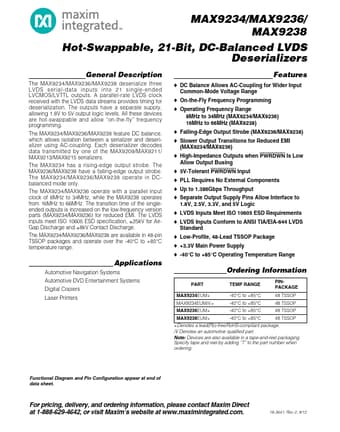

Additional preview pages of the MAX9234 datasheet.

MAX9234 Product details

Description

The MAX9234/MAX9236/MAX9238 deserialize three LVDS serial-data inputs into 21 single-ended LVCMOS/LVTTL outputs.

Features

DC Balance Allows AC-Coupling for Wider Input Common-Mode Voltage Range.
On-the-Fly Frequency Programming.
Operating Frequency Range 8MHz to 34MHz (MAX9234/MAX9236) 16MHz to 66MHz (MAX9238).
Falling-Edge Output Strobe (MAX9236/MAX9238).
Slower Output Transitions for Reduced EMI (MAX9234/MAX9236).
High-Impedance Outputs when PWRDWN Is Low Allow Output Busing.
5V-Tolerant PWRDWN Input.
PLL Requires No External Components.
