MAX6883 - Power-Supply Sequencers/Supervisors

Product Overview

Maxim Integrated Products

📥 Download Datasheet

MAX6883 Power-Supply Sequencers/Supervisors by Maxim Integrated Products - Datasheet Preview — Datasheet preview – MAX6883

Datasheet Details

Part number	MAX6883
Manufacturer	Maxim Integrated Products
File Size	447.79 KB
Description	Power-Supply Sequencers/Supervisors
Datasheet	MAX6883 Datasheet
Note	This datasheet PDF includes multiple part numbers: MAX6883, MAX6880. Please refer to the document for exact specifications by model.

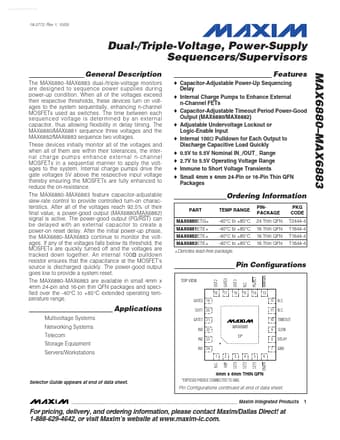

Additional preview pages of the MAX6883 datasheet.

Product details

Description

The MAX6880 MAX6883 dual-/triple-voltage monitors are designed to sequence power supplies during power-up condition.

Features

Capacitor-Adjustable Power-Up Sequencing Delay.
Internal Charge Pumps to Enhance External n-Channel FETs.
Capacitor-Adjustable Timeout Period Power-Good Output (MAX6880/MAX6882).
Adjustable Undervoltage Lockout or Logic-Enable Input.
Internal 100Ω Pulldown for Each Output to Discharge Capacitive Load Quickly.
0.5V to 5.5V Nominal IN_/OUT_ Range.
2.7V to 5.5V Operating Voltage Range.
Immune to Short Voltage Transients.
