MAX6882 - Power-Supply Sequencers/Supervisors

Download the MAX6882 datasheet PDF. This datasheet also covers the MAX6880 variant, as both devices belong to the same power-supply sequencers/supervisors family and are provided as variant models within a single manufacturer datasheet.

Description

The MAX6880

MAX6883 dual-/triple-voltage monitors are designed to sequence power supplies during power-up condition.

When all of the voltages exceed their respective thresholds, these devices turn on voltages to the system sequentially, enhancing n-channel MOSFETs used as switches.

Features

  • Capacitor-Adjustable Power-Up Sequencing Delay.
  • Internal Charge Pumps to Enhance External n-Channel FETs.
  • Capacitor-Adjustable Timeout Period Power-Good Output (MAX6880/MAX6882).
  • Adjustable Undervoltage Lockout or Logic-Enable Input.
  • Internal 100Ω Pulldown for Each Output to Discharge Capacitive Load Quickly.
  • 0.5V to 5.5V Nominal IN_/OUT_ Range.
  • 2.7V to 5.5V Operating Voltage Range.
  • Immune to Short Voltage Transients.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (MAX6880_MaximIntegratedProducts.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Part Number Description Manufacturer
MAX688 High-Accuracy / Low-Dropout Linear Regulators Maxim Integrated
MAX6884 Hex Power-Supply Supervisory Circuits Maxim Integrated
MAX6885 Hex Power-Supply Supervisory Circuits Maxim Integrated
MAX6886 Hex Power-Supply Supervisory Maxim Integrated
MAX6887 Power-Supply Supervisory Maxim Integrated

Other Datasheets by Maxim Integrated (Analog Devices)

Part Number Description
MAX6880 Power-Supply Sequencers/Supervisors
MAX6881 Power-Supply Sequencers/Supervisors
MAX6883 Power-Supply Sequencers/Supervisors
MAX6841 (MAX6841 - MAX6845) Ultra-Low-Voltage uP Reset Circuits and Voltage Detectors
MAX6842 (MAX6841 - MAX6845) Ultra-Low-Voltage uP Reset Circuits and Voltage Detectors

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

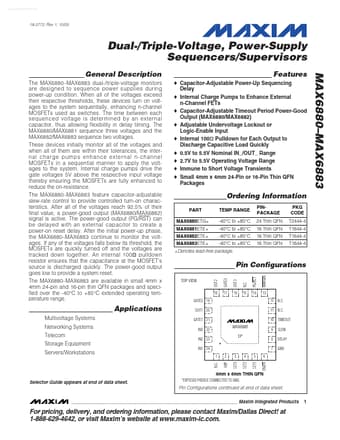

www.DataSheet4U.com 19-3772; Rev 1; 10/05 Dual-/Triple-Voltage, Power-Supply Sequencers/Supervisors General Description The MAX6880–MAX6883 dual-/triple-voltage monitors are designed to sequence power supplies during power-up condition. When all of the voltages exceed their respective thresholds, these devices turn on voltages to the system sequentially, enhancing n-channel MOSFETs used as switches. The time between each sequenced voltage is determined by an external capacitor, thus allowing flexibility in delay timing. The MAX6880/MAX6881 sequence three voltages and the MAX6882/MAX6883 sequence two voltages.
