MAX4910 - Clickless Audio Switches

Maxim Integrated Products

The MAX4910 by Maxim Integrated Products is a Clickless Audio Switches. Below is the official datasheet preview.

📥 Download Datasheet

MAX4910 Clickless Audio Switches by Maxim Integrated Products - Datasheet Preview — Official preview page of the **MAX4910** Clickless Audio Switches datasheet (Maxim Integrated Products).

Datasheet Details

Part number	MAX4910
Manufacturer	Maxim Integrated Products
File Size	695.92 KB
Description	Clickless Audio Switches
Datasheet	MAX4910_MaximIntegratedProducts.pdf

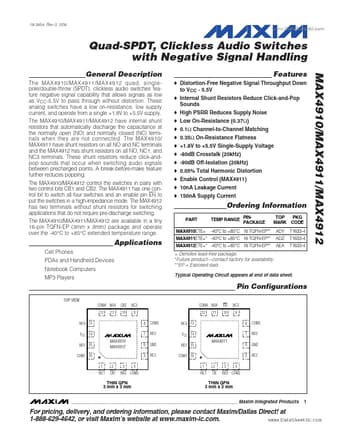

Additional preview pages of the MAX4910 datasheet.

MAX4910 Product details

Description

The MAX4910/MAX4911/MAX4912 quad, singlepole/double-throw (SPDT), clickless audio switches feature negative signal capability that allows signals as low as VCC-5.5V to pass through without distortion.

Features

Distortion-Free Negative Signal Throughput Down to VCC - 5.5V.
Internal Shunt Resistors Reduce Click-and-Pop Sounds.
High PSRR Reduces Supply Noise.
Low On-Resistance (0.37Ω).
0.1Ω Channel-to-Channel Matching.
0.35Ω On-Resistance Flatness.
+1.8V to +5.5V Single-Supply Voltage.
-80dB Crosstalk (20kHz).
-90dB Off-Isolation (20kHz).
0.05% Total Harmonic Distortion.
Enable Control (MAX4911).
