MAX4904, MAX4901 - Low-RON & Dual-SPST/Single-SPDT Clickless Switches

Maxim Integrated Products

The MAX4904 by Maxim Integrated Products is a Low-RON & Dual-SPST/Single-SPDT Clickless Switches. Below is the official datasheet preview.

📥 Download Datasheet

MAX4904 Low-RON & Dual-SPST/Single-SPDT Clickless Switches by Maxim Integrated Products - Datasheet Preview — Official preview page of the **MAX4904** Low-RON & Dual-SPST/Single-SPDT Clickless Switches datasheet (Maxim Integrated Products).

Datasheet Details

Part number	MAX4904, MAX4901
Manufacturer	Maxim Integrated Products
File Size	375.63 KB
Description	Low-RON & Dual-SPST/Single-SPDT Clickless Switches
Datasheet	MAX4901_MaximIntegratedProducts.pdf
Note	This datasheet PDF includes multiple part numbers: MAX4904, MAX4901. Please refer to the document for exact specifications by model.

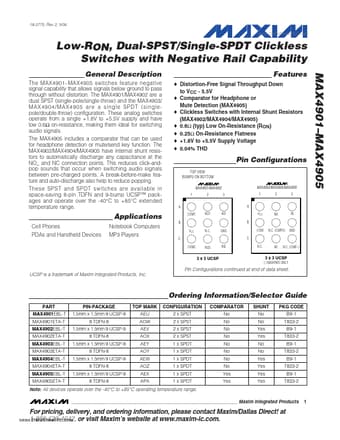

Additional preview pages of the MAX4904 datasheet.

MAX4904 Product details

Description

The MAX4901 MAX4905 switches feature negative signal capability that allows signals below ground to pass through without distortion.

Features

Distortion-Free Signal Throughput Down to VCC - 5.5V.
Comparator for Headphone or Mute Detection (MAX4905).
Clickless Switches with Internal Shunt Resistors (MAX4902/MAX4904/MAX4905).
0.6Ω (typ) Low On-Resistance (RON).
0.25Ω On-Resistance Flatness.
+1.8V to +5.5V Supply Voltage.
0.04% THD MAX4901.
MAX4905 Pin Configurations TOP VIEW BUMPS ON BOTTOM MAX4901/MAX4902 1 A COM1 B VCC C COM2 NO2 IN2 N. C. GND C N. C. NC N. C. (CMP-.
