MAX4372H, MAX4372F - High-Side Current-Sense Amplifier

MAX4372H Description

19-1548; Rev 4; 7/09 Low-Cost, UCSP/SOT23, Micropower, High-Side Current-Sense Amplifier with Voltage Output General .
The MAX4372 low-cost, precision, high-side currentsense amplifier is available in a tiny, space-saving SOT23-5-pin package.

MAX4372H Features

* a voltage output that eliminates the need for gain-setting resistors and is ideal for today’s notebook computers, cell phones, and other systems where battery/DC current monitoring is critical. High-side current monitoring is especially useful in battery-powered systems since it does not interfere w

MAX4372H Applications

* refer to the MAX4173T/F/H data sheet. o 30µA Supply Current o 2.7V to 28V Operating Supply o 0.18% Full-Scale Accuracy o 0.3mV Input Offset Voltage o Low 1.5Ω Output Impedance o Three Gain Versions Available 20V/V (MAX4372T) 50V/V (MAX4372F) 100V/V (MAX4372H) o High Accuracy +2V to +28V Common-Mode

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: MAX4372H, MAX4372F. Please refer to the document for exact specifications by model.

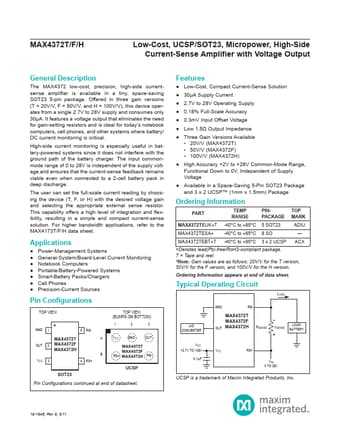

datasheet Preview Page 2 datasheet Preview Page 3
