MAX3679 - Low-Jitter Crystal to LVPECL Clock Generator

The MAX3679 by Maxim Integrated Products is a Low-Jitter Crystal to LVPECL Clock Generator. Below is the official datasheet preview.

📥 Download Datasheet

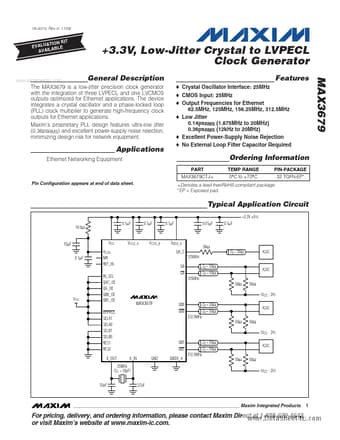

Official preview page of the MAX3679 Low-Jitter Crystal to LVPECL Clock Generator datasheet (Maxim Integrated Products).

MAX3679 Product details

Description

Crystal Oscillator Interface: 25MHz CMOS Input: 25MHz Output Frequencies for Ethernet 62.5MHz, 125MHz, 156.25MHz, 312.5MHz Low Jitter 0.14psRMS (1.875MHz to 20MHz) 0.36psRMS (12kHz to 20MHz) Excellent Power-Supply Noise Rejection No External Loop Filter Capacitor Required www.datasheet4u.com

Features
