MAX3624A - Precision Clock Generator

Features

  • Crystal Oscillator Interface: 19.375MHz to 27MHz.
  • CMOS Input: 19MHz to 40.5MHz.
  • Output Frequencies Ethernet: 62.5MHz, 125MHz, 156.25MHz, 312.5MHz Fibre Channel: 106.25MHz, 159.375MHz, 212.5MHz, 318.5MHz SONET/SDH: 77.76MHz, 155.52MHz, 311.04MHz.
  • Low Jitter 0.14psRMS (1.875MHz to 20MHz) 0.36psRMS (12kHz to 20MHz).
  • Excellent Power-Supply Noise Rejection.
  • No External Loop Filter Capacitor Required MAX3624A The MAX3624A is a low-jitter, precis.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
MAX362 Precision / Quad / SPST Analog Switches Maxim Integrated
MAX3622 Precision Clock Generator Microsemi
MAX361 Precision / Quad / SPST Analog Switches Maxim
MAX364 Precision / Quad / SPST Analog Switches Maxim
MAX365 Precision / Quad / SPST Analog Switches Maxim

Other Datasheets by Maxim Integrated (Analog Devices)

Part Number Description
MAX3624 Precision Clock Generator
MAX3620 Delay Lines
MAX3622 Precision Clock Generator
MAX3625 Precision Clock Generator
MAX3625A Precision Clock Generator

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

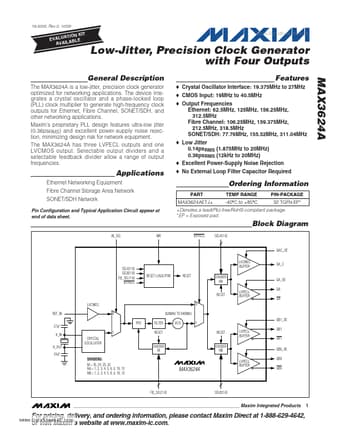

19-5005; Rev 0; 10/09 KIT ATION EVALU E L B A IL AVA www.DataSheet4U.com Low-Jitter, Precision Clock Generator with Four Outputs General Description Features ♦ Crystal Oscillator Interface: 19.375MHz to 27MHz ♦ CMOS Input: 19MHz to 40.5MHz ♦ Output Frequencies Ethernet: 62.5MHz, 125MHz, 156.25MHz, 312.5MHz Fibre Channel: 106.25MHz, 159.375MHz, 212.5MHz, 318.5MHz SONET/SDH: 77.76MHz, 155.52MHz, 311.04MHz ♦ Low Jitter 0.14psRMS (1.875MHz to 20MHz) 0.36psRMS (12kHz to 20MHz) ♦ Excellent Power-Supply Noise Rejection ♦ No External Loop Filter Capacitor Required MAX3624A The MAX3624A is a low-jitter, precision clock generator optimized for networking applications.
