MAX31850, MAX31851 1-Wire Thermocouple-to-Digital Converters

MAX31850 Description

EVALUATION KIT AVAILABLE MAX31850/MAX31851 Cold-Junction Compensated, 1-Wire Thermocouple-to-Digital Converters General .
The MAX31850/MAX31851 cold-junction compensated, 1-WireM thermocouple-to-digital converters perform cold-junction compensation and digitize the signal.

MAX31850 Features

* S Integration Reduces Design Time and Lowers System Cost
* 14-Bit, 0.25NC Resolution
* Integrated Cold-Junction Compensation
* Available for Multiple Thermocouples Types: Supports K-, J-, N-, T-, and E-Type (MAX31850); S- and R-Type (MAX31851)
* Detects Thermocou

MAX31850 Applications

* Industrial Appliances HVAC Medical Ordering Information appears at end of data sheet. Block Diagram COLD-JUNCTION COMPENSATION S5 MAX31850 MAX31851 T+ TS1 S2 S3 S4 ADC FAULT DETECTION REFERENCE VOLTAGE 64-BIT ROM AND 1-Wire PORT MEMORY CONTROL LOGIC SCRATCHPAD ADDRESS PIN INPUT PARASITEPOW

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: MAX31850, MAX31851. Please refer to the document for exact specifications by model.

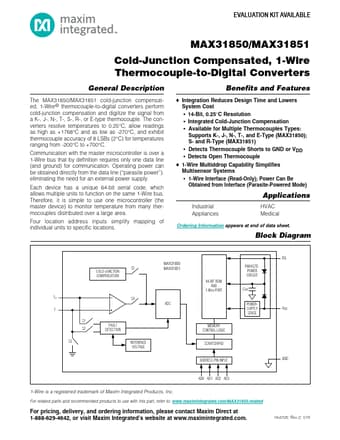

datasheet Preview Page 2 datasheet Preview Page 3
