MAX3181E - RS-232 Receivers

Download the MAX3181E datasheet PDF (MAX3180E included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for rs-232 receivers.

Description

The MAX3180E

MAX3183E single RS-232 receivers in a SOT23-5 package are designed for space- and costconstrained applications requiring minimal RS-232 communications.

Features

  • MAX3180E.
  • MAX3183E.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (MAX3180E_MaximIntegratedProducts.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

  • MAX3181 - +3V to +5.5V / 1.5Mbps RS-232 Receivers (Maxim Integrated)
  • MAX3182 - +3V to +5.5V / 1.5Mbps RS-232 Receivers (Maxim Integrated)
  • MAX31820 - 1-Wire Ambient Temperature Sensor (Maxim Integrated)
  • MAX31820PAR - Ambient Temperature Sensor (Maxim Integrated)
  • MAX31825 - Temperature Sensor (Maxim Integrated)
  • MAX31826 - 1-Wire Digital Temperature Sensor (Maxim Integrated Products)
  • MAX3183 - +3V to +5.5V / 1.5Mbps RS-232 Receivers (Maxim Integrated)
  • MAX31850 - 1-Wire Thermocouple-to-Digital Converters (Maxim Integrated Products)
  • MAX31851 - 1-Wire Thermocouple-to-Digital Converters (Maxim Integrated Products)
  • MAX31855 - Thermocouple-to-Digital Converter (Maxim Integrated Products)
Other Datasheets by Maxim

Full PDF Text Transcription

Click to expand full text

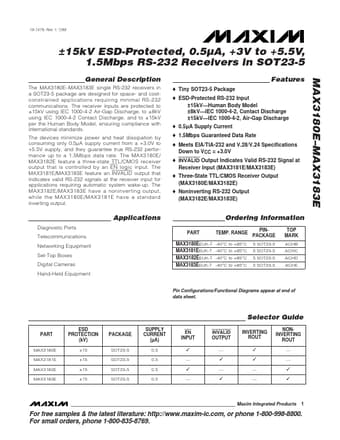

19-1479; Rev 1; 7/99 ±15kV ESD-Protected, 0.5µA, +3V to +5.5V, 1.5Mbps RS-232 Receivers in SOT23-5 General Description The MAX3180E–MAX3183E single RS-232 receivers in a SOT23-5 package are designed for space- and costconstrained applications requiring minimal RS-232 communications. The receiver inputs are protected to ±15kV using IEC 1000-4-2 Air-Gap Discharge, to ±8kV using IEC 1000-4-2 Contact Discharge, and to ±15kV per the Human Body Model, ensuring compliance with international standards. The devices minimize power and heat dissipation by consuming only 0.5µA supply current from a +3.0V to +5.5V supply, and they guarantee true RS-232 performance up to a 1.5Mbps data rate. The MAX3180E/ MAX3182E feature a three-state TTL/CMOS receiver output that is controlled by an EN logic input.
