MAX16010 - (MAX16010 - MAX16014) Overvoltage Protection/Detection Circuits

Maxim Integrated Products

The MAX16010 by Maxim Integrated Products is a (MAX16010 - MAX16014) Overvoltage Protection/Detection Circuits. Below is the official datasheet preview.

📥 Download Datasheet

MAX16010 (MAX16010 - MAX16014) Overvoltage Protection/Detection Circuits by Maxim Integrated Products - Datasheet Preview — Official preview page of the **MAX16010** (MAX16010 - MAX16014) Overvoltage Protection/Detection Circuits datasheet (Maxim Integrated Products).

Datasheet Details

Part number	MAX16010
Manufacturer	Maxim Integrated Products
File Size	391.60 KB
Description	(MAX16010 - MAX16014) Overvoltage Protection/Detection Circuits
Datasheet	MAX16010_MaximIntegratedProducts.pdf

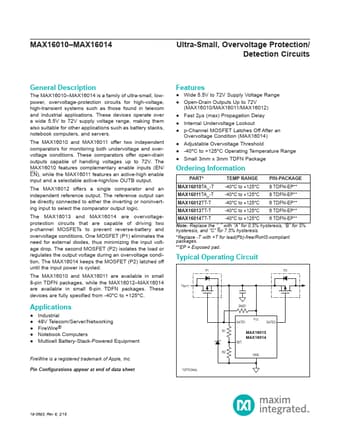

Additional preview pages of the MAX16010 datasheet.

MAX16010 Product details

Description

The MAX16010 MAX16014 is a family of ultra-small, lowpower, overvoltage protection circuits for high-voltage, high-transient systems such as those found in automotive, telecom, and industrial applications.

Features

complementary enable inputs (EN/EN), while the MAX16011 features an active-high enable input and a selectable active-high/low OUTB output. The MAX16012 offers a single comparator and an independent reference output. The reference output can be directly connected to either the inverting or noninverting input to select the comparator output logic. The MAX16013 and MAX16014 are overvoltage protection circuits that are capable of driving two p-channel MOSFETs to prevent reverse-battery and overvolta.
