MAX16020 - (MAX160xx) Low-Power uP Supervisory Circuits

General Description

The MAX16016/MAX16020/MAX16021 supervisory circuits monitor power supplies, provide battery-backup control, and chip-enable (CE) gating to write protect memory in microprocessor (µP)-based systems.

Key Features

  • section. The MAX16016/MAX16020/MAX16021 operate from a 1.53V to 5.5V supply voltage and offer fixed reset thresholds for monitoring 5V, 3.3V, 3V, 2.5V, and 1.8V systems. Each device is available with either a pushpull or open-drain reset output. The MAX16016/MAX16020/MAX16021 are available in small TDFN/TQFN packages and are fully specified for an operating temperature range of -40°C to +85°C. Features o System Monitoring for 5V, 3.3V, 3V, 2.5V, or 1.8V Power-Supply Voltages o 1.53V to 5.5V Ope.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
MAX1602 Single-Channel CardBus and PCMCIA VCC/VPP Power-Switching Network Maxim
MAX160 uP Compatible 8 Bit A/D Converter Maxim
MAX1600 Dual-Channel CardBus and PCMCIA VCC/VPP Power-Switching Networks Maxim
MAX1601 Dual-Channel CardBus and PCMCIA Power Switches with SMBus Serial Interface Maxim
MAX1603 Dual-Channel CardBus and PCMCIA VCC/VPP Power-Switching Networks Maxim

Other Datasheets by Maxim Integrated (Analog Devices)

Part Number Description
MAX16021 (MAX160xx) Low-Power uP Supervisory Circuits
MAX16023 Battery-Backup Circuits
MAX16024 Battery-Backup Circuits
MAX16025 Sequencing/Supervisory Circuits
MAX16026 Sequencing/Supervisory Circuits

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

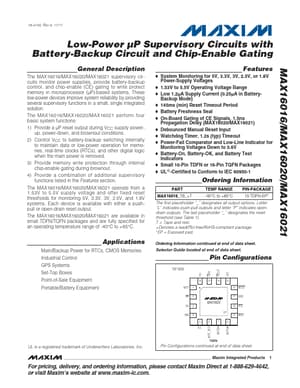

19-4145; Rev 2; 10/08 www.DataSheet4U.com Low-Power µP Supervisory Circuits with Battery-Backup Circuit and Chip-Enable Gating General Description The MAX16016/MAX16020/MAX16021 supervisory circuits monitor power supplies, provide battery-backup control, and chip-enable (CE) gating to write protect memory in microprocessor (µP)-based systems. These low-power devices improve system reliability by providing several supervisory functions in a small, single integrated solution. The MAX16016/MAX16020/MAX16021 perform four basic system functions: 1) Provide a µP reset output during VCC supply powerup, power-down, and brownout conditions.
