MAX1572 - PWM DC-to-DC Step-Down Converter

Product Overview

Maxim Integrated Products

Part number	MAX1572
Manufacturer	Maxim Integrated Products
File Size	345.36 KB
Description	PWM DC-to-DC Step-Down Converter
Datasheet	MAX1572 Datasheet

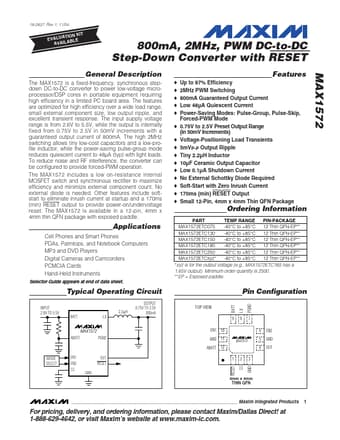

Additional preview pages of the MAX1572 datasheet.

o o o o o o o o o o o o o o o Up to 97% Efficiency 2MHz PWM Switching 800mA Guaranteed Output Current Low 48µA Quiescent Current Power-Saving Modes: Pulse-Group, Pulse-Skip, Forced-PWM Mode 0.75V to 2.5V Preset Output Range (in 50mV Increments) Voltage-Positioning Load Transients 5mVP-P Output Ripple Tiny 2.2µH Inductor 10µF Ceramic Output Capacitor Low 0.1µA Shutdown Current No External Schottky Diode Required Soft-Start with Zero Inrush Current 170ms (min) RESET Output Small 12-Pin, 4mm x 4mm.
