MAX1518 - (MAX1516 - MAX1518) TFT-LCD DC-DC Converters

Maxim Integrated Products

The MAX1518 by Maxim Integrated Products is a (MAX1516 - MAX1518) TFT-LCD DC-DC Converters. Below is the official datasheet preview.

📥 Download Datasheet

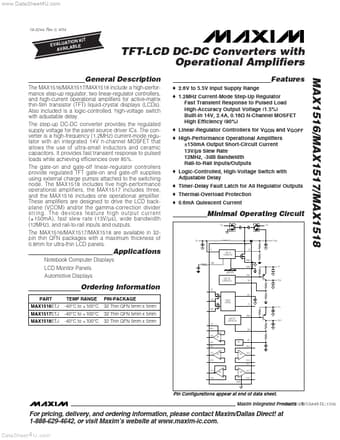

MAX1518 (MAX1516 - MAX1518) TFT-LCD DC-DC Converters by Maxim Integrated Products - Datasheet Preview — Official preview page of the **MAX1518** (MAX1516 - MAX1518) TFT-LCD DC-DC Converters datasheet (Maxim Integrated Products).

Datasheet Details

Part number	MAX1518
Manufacturer	Maxim Integrated Products
File Size	1.09 MB
Description	(MAX1516 - MAX1518) TFT-LCD DC-DC Converters
Datasheet	MAX1518_MaximIntegratedProducts.pdf
Additional preview pages of the MAX1518 datasheet.

MAX1518 Product details

Description

The MAX1516/MAX1517/MAX1518 include a high-performance step-up regulator, two linear-regulator controllers, and high-current operational amplifiers for active-matrix thin-film transistor (TFT) liquid-crystal displays (LCDs).

Features

2.6V to 5.5V Input Supply Range.
1.2MHz Current-Mode Step-Up Regulator Fast Transient Response to Pulsed Load High-Accuracy Output Voltage (1.5%) Built-In 14V, 2.4A, 0.16Ω N-Channel MOSFET High Efficiency (90%).
Linear-Regulator Controllers for VGON and VGOFF.
High-Performance Operational Amplifiers ±150mA Output Short-Circuit Current 13V/µs Slew Rate 12MHz, -3dB Bandwidth Rail-to-Rail Inputs/Outputs.
Logic-Controlled, High-Voltage Switch with Adjust.
