MAX15106B, MAX15106A - Synchronous Step-Down Switching Regulator

Analog Devices

The MAX15106B by Analog Devices is a Synchronous Step-Down Switching Regulator. Below is the official datasheet preview.

📥 Download Datasheet

MAX15106B Synchronous Step-Down Switching Regulator by Analog Devices - Datasheet Preview — Official preview page of the **MAX15106B** Synchronous Step-Down Switching Regulator datasheet (Analog Devices).

Datasheet Details

Part number	MAX15106B, MAX15106A
Manufacturer	Analog Devices
File Size	855.22 KB
Description	Synchronous Step-Down Switching Regulator
Datasheet	MAX15106A-AnalogDevices.pdf
Note	This datasheet PDF includes multiple part numbers: MAX15106B, MAX15106A. Please refer to the document for exact specifications by model.

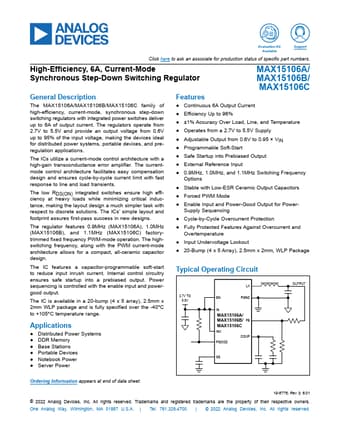

Additional preview pages of the MAX15106B datasheet.

MAX15106B Product details

Description

The MAX15106A/MAX15106B/MAX15106C family of high-efficiency, current-mode, synchronous step-down switching regulators with integrated power switches deliver up to 6A of output current.

Features

0.9MHz (MAX15106A), 1.0MHz (MAX15106B), and 1.1MHz (MAX15106C) factorytrimmed fixed frequency PWM-mode operation. The highswitching frequency, along with the PWM current-mode architecture allows for a compact, all-ceramic capacitor design. Features.
Continuous 6A Output Current.
Efficiency Up to 96%.
±1% Accuracy Over Load, Line, and Temperature.
Operates from a 2.7V to 5.5V Supply.
Adjustable Output from 0.6V to 0.95 × VIN.
Programmable Soft-Start.
Safe Start.
