ICL7653, ICL7650 - (ICL7650x / ICL7653x) Chopper-Stabilized Op Amps

Maxim Integrated Products

Datasheet Details

Part number	ICL7653, ICL7650
Manufacturer	Maxim Integrated Products
File Size	162.02 KB
Description	(ICL7650x / ICL7653x) Chopper-Stabilized Op Amps
Datasheet	ICL7650_MaximIntegratedProducts.pdf
Note	This datasheet PDF includes multiple part numbers: ICL7653, ICL7650. Please refer to the document for exact specifications by model.

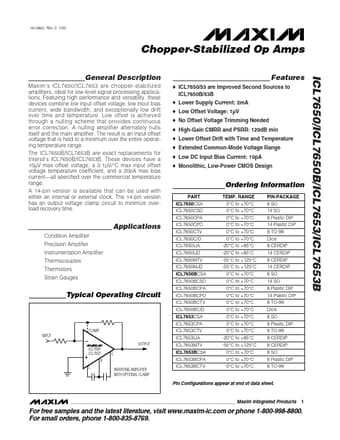

Maxim’s ICL7650/ICL7653 are chopper-stabilized amplifiers, ideal for low-level signal processing applications.

o ICL7650/53 are Improved Second Sources to ICL7650B/53B o Lower Supply Current: 2mA o Low Offset Voltage: 1µV o No Offset Voltage Trimming Needed o High-Gain CMRR and PSRR: 120dB min o Lower Offset Drift with Time and Temperature o Extended Common-Mode Voltage Range o Low DC Input Bias Current: 10pA o Monolithic, Low-Power CMOS Design ICL7650/ICL7650B/ICL7653/ICL7653B Ordering Information PART ICL7650CSA ICL7650CSD ICL7650CPA ICL7650CPD ICL7650CTV ICL7650C/D ICL7650IJA ICL7650IJD ICL7650MTV I.
