ICL7611 - Single/Dual/Triple/Quad Operational Amplifiers

Download the ICL7611 datasheet PDF. This datasheet also covers the ICL761x variant, as both devices belong to the same single/dual/triple/quad operational amplifiers family and are provided as variant models within a single manufacturer datasheet.

General Description

The ICL761X

ICL764X family of monolithic CMOS op amps combine ultra-low input current with low-power operation over a wide supply voltage range.

Key Features

  • o Pin-for-Pin Second Source o 1pA Typical Bias Current.
  • 4nA (max) at +125°C o ±1V to ±8V Wide Supply Voltage Range o Industry-Standard Pinouts o Programmable Quiescent Currents of 10µA, 100µA, and 1000µA o Monolithic, Low-Power CMOS Design ICL76XX Ordering Information MN VOS.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (ICL761x_MaximIntegratedProducts.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Part Number Description Manufacturer
ICL7611 Low Power CMOS Operational Amplifiers Renesas
ICL7612 Low Power CMOS Operational Amplifiers Renesas
ICL7600 (ICL7600 / ICL7601) High Reliability Commutating Auto Zero Operational Amplifier Intersil Corporation
ICL7601 (ICL7600 / ICL7601) High Reliability Commutating Auto Zero Operational Amplifier Intersil Corporation
ICL7605 High Reliability Commutating Auto-Zero Instrumentaion Amplifier General Electric Solid State

Other Datasheets by Maxim Integrated (Analog Devices)

Part Number Description
ICL7612 Single/Dual/Triple/Quad Operational Amplifiers
ICL7614 Single/Dual/Triple/Quad Operational Amplifiers
ICL7616 Single/Dual/Triple/Quad Operational Amplifiers
ICL7621 Single/Dual/Triple/Quad Operational Amplifiers
ICL7622 Single/Dual/Triple/Quad Operational Amplifiers

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

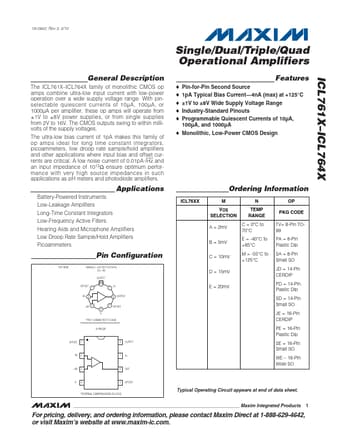

19-0942; Rev 3; 5/10 ICL761X–ICL764X Single/Dual/Triple/Quad Operational Amplifiers General Description The ICL761X–ICL764X family of monolithic CMOS op amps combine ultra-low input current with low-power operation over a wide supply voltage range. With pinselectable quiescent currents of 10µA, 100µA, or 1000µA per amplifier, these op amps will operate from ±1V to ±8V power supplies, or from single supplies from 2V to 16V. The CMOS outputs swing to within millivolts of the supply voltages. The ultra-low bias current of 1pA makes this family of op amps ideal for long time constant integrators, picoammeters, low droop rate sample/hold amplifiers and other applications where input bias and offset currents are critical. A low noise current of 0.
