TSM1770, TSM0412 Datasheet - Magnetic Cube

TSM1770 TSM SERIES

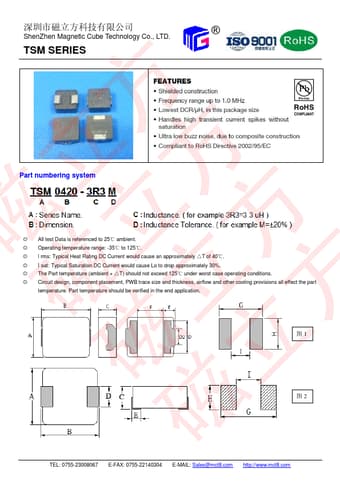

ShenZhen Magnetic Cube Technology Co., LTD. TSM SERIES ® Part numbering system ◎ All test Data is referenced to 25℃ ambient. ◎ Operating temperature range: -35℃ to 125℃. ◎ Irms: Typical Heat Rating DC Current would cause an approximately △T of 40℃. ◎ Isat: Typical Saturation DC Current would cause Lo to drop approximately 30%. ◎ The Part temperature (ambient + △T) should not exceed 125℃ under worst case operating conditions. ◎ Circuit design, component placement, PWB trace size and thickne.

TSM0412-MagneticCube.pdf

This datasheet PDF includes multiple part numbers: TSM1770, TSM0412. Please refer to the document for exact specifications by model.
TSM1770 Datasheet Preview Page 2 TSM1770 Datasheet Preview Page 3

Datasheet Details

Part number:

TSM1770, TSM0412

Manufacturer:

Magnetic Cube

File Size:

233.58 KB

Description:

Tsm series.

Note:

This datasheet PDF includes multiple part numbers: TSM1770, TSM0412.
Please refer to the document for exact specifications by model.
