MMF80R650PB - N-channel MOSFET

The MMF80R650PB by MagnaChip is a N-channel MOSFET. Below is the official datasheet preview.

📥 Download Datasheet

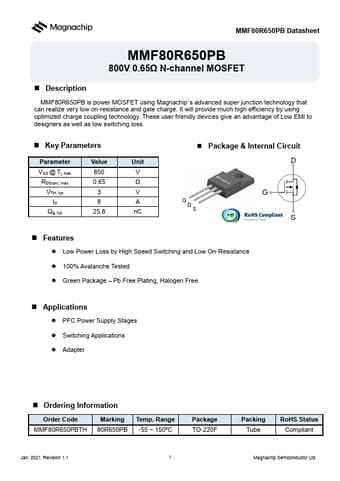

Official preview page of the MMF80R650PB N-channel MOSFET datasheet (MagnaChip).

Datasheet Details

Part number MMF80R650PB
Manufacturer MagnaChip
File Size 1.44 MB
Description N-channel MOSFET
Datasheet download datasheet MMF80R650PB-MagnaChip.pdf
Additional preview pages of the MMF80R650PB datasheet.

MMF80R650PB Product details

Description

MMF80R650PB is power MOSFET using Magnachip’s advanced super junction technology that can realize very low on-resistance and gate charge. Key Parameters Parameter VDS @ Tj, max RDS(on), max VTH, typ ID Qg, typ Value 850 0.65 3 8 25.8 Unit V Ω V A nC Package & Internal Circuit D G D S G S

Features
