MMF80R1K2PB - N-channel MOSFET

The MMF80R1K2PB by MagnaChip is a N-channel MOSFET. Below is the official datasheet preview.

📥 Download Datasheet

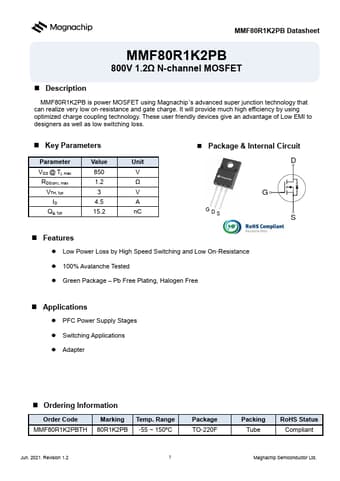

Official preview page of the MMF80R1K2PB N-channel MOSFET datasheet (MagnaChip).

Datasheet Details

Part number MMF80R1K2PB
Manufacturer MagnaChip
File Size 1.47 MB
Description N-channel MOSFET
Datasheet download datasheet MMF80R1K2PB-MagnaChip.pdf
Additional preview pages of the MMF80R1K2PB datasheet.

MMF80R1K2PB Product details

Description

MMF80R1K2PB is power MOSFET using Magnachip’s advanced super junction technology that can realize very low on-resistance and gate charge. Key Parameters Parameter VDS @ Tj, max RDS(on), max VTH, typ ID Qg, typ Value 850 1.2 3 4.5 15.2 Unit V Ω V A nC Package & Internal Circuit D GDS G S F

Features
