MMF70R900Q - N-channel MOSFET

MagnaChip

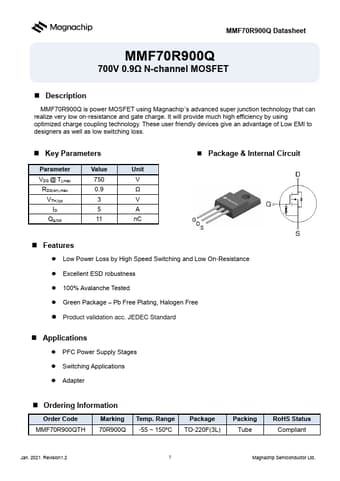

The MMF70R900Q by MagnaChip is a N-channel MOSFET. Below is the official datasheet preview.

Datasheet Details

Part number	MMF70R900Q
Manufacturer	MagnaChip
File Size	1.24 MB
Description	N-channel MOSFET
Datasheet	MMF70R900Q-MagnaChip.pdf
Additional preview pages of the MMF70R900Q datasheet.

MMF70R900Q Product details

Description

MMF70R900Q is power MOSFET using Magnachip’s advanced super junction technology that can realize very low on-resistance and gate charge. Key Parameters Parameter VDS @ Tj,max RDS(on),max VTH,typ ID Qg,typ Value 750 0.9 3 5 11 Unit V Ω V A nC Package & Internal Circuit G D S

Features

Low Power Loss by High Speed Switching and Low On-Resistance.
Excellent ESD robustness.
100% Avalanche Tested.
Green Package.
Pb Free Plating, Halogen Free.
Product validation acc. JEDEC Standard.
