MMF60R190Q - N-Channel MOSFET

The MMF60R190Q by MagnaChip is a N-Channel MOSFET. Below is the official datasheet preview.

📥 Download Datasheet

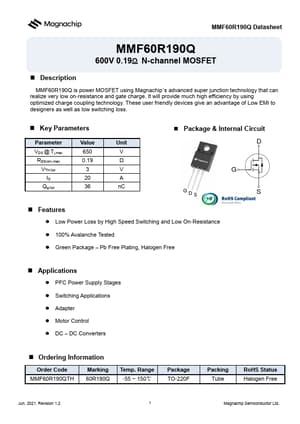

Official preview page of the MMF60R190Q N-Channel MOSFET datasheet (MagnaChip).

Datasheet Details

Part number MMF60R190Q
Manufacturer MagnaChip
File Size 1.55 MB
Description N-Channel MOSFET
Datasheet download datasheet MMF60R190Q-MagnaChip.pdf
Additional preview pages of the MMF60R190Q datasheet.

MMF60R190Q Product details

Description

MMF60R190Q is power MOSFET using Magnachip’s advanced super junction technology that can realize very low on-resistance and gate charge. Key Parameters Parameter VDS @ Tj,max RDS(on),max VTH,typ ID Qg,typ Value 650 0.19 3 20 36 Unit V Ω V A nC Package & Internal Circuit D GDS G S

Features
