MMF60R280Q - N-channel MOSFET

The MMF60R280Q by MagnaChip is a N-channel MOSFET. Below is the official datasheet preview.

📥 Download Datasheet

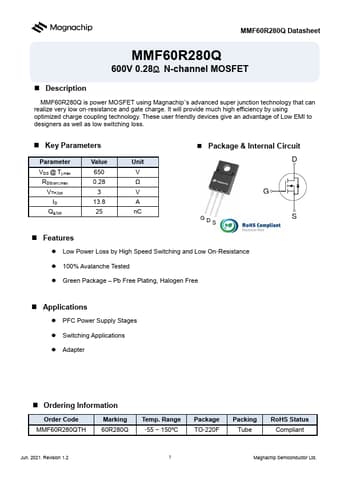

Official preview page of the MMF60R280Q N-channel MOSFET datasheet (MagnaChip).

Datasheet Details

Part number MMF60R280Q
Manufacturer MagnaChip
File Size 1.27 MB
Description N-channel MOSFET
Datasheet download datasheet MMF60R280Q-MagnaChip.pdf
Additional preview pages of the MMF60R280Q datasheet.

MMF60R280Q Product details

Description

MMF60R280Q is power MOSFET using Magnachip’s advanced super junction technology that can realize very low on-resistance and gate charge. Key Parameters Parameter VDS @ Tj,max RDS(on),max VTH,typ ID Qg,typ Value 650 0.28 3 13.8 25 Unit V Ω V A nC Package & Internal Circuit D GDS G S Featur

Features
