MMD70R600Q - N-Channel MOSFET

Product Overview

MagnaChip

Datasheet Details

Part number	MMD70R600Q
Manufacturer	MagnaChip
File Size	1.31 MB
Description	N-Channel MOSFET
Datasheet	MMD70R600Q Datasheet

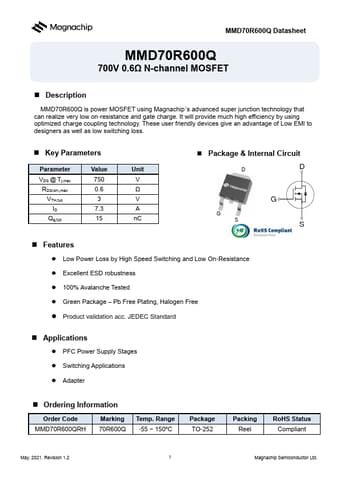

Additional preview pages of the MMD70R600Q datasheet.

Product details

Description

MMD70R600Q is power MOSFET using Magnachip’s advanced super junction technology that can realize very low on-resistance and gate charge. Key Parameters Parameter VDS @ Tj,max RDS(on),max VTH,typ ID Qg,typ Value 750 0.6 3 7.3 15 Unit V Ω V A nC Package & Internal Circuit D D G S G S Feat

Features

Low Power Loss by High Speed Switching and Low On-Resistance.
Excellent ESD robustness.
100% Avalanche Tested.
Green Package.
Pb Free Plating, Halogen Free.
Product validation acc. JEDEC Standard.
