MMD70R1K4P - N-channel MOSFET

Product Overview

MagnaChip

Datasheet Details

Part number	MMD70R1K4P
Manufacturer	MagnaChip
File Size	1.15 MB
Description	N-channel MOSFET
Datasheet	MMD70R1K4P Datasheet

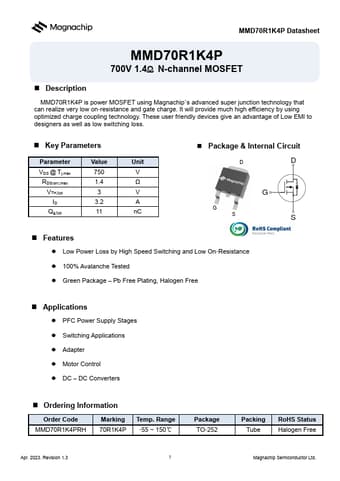

Additional preview pages of the MMD70R1K4P datasheet.

Product details

Description

MMD70R1K4P is power MOSFET using Magnachip’s advanced super junction technology that can realize very low on-resistance and gate charge. Key Parameters Parameter VDS @ Tj,max RDS(on),max VTH,typ ID Qg,typ Value 750 1.4 3 3.2 11 Unit V Ω V A nC Package & Internal Circuit D D G S G S Feat

Features

Low Power Loss by High Speed Switching and Low On-Resistance.
100% Avalanche Tested.
Green Package.
Pb Free Plating, Halogen Free.
