MDU1512 - N-Channel Trench MOSFET

Product Overview

MagnaChip

Datasheet Details

Part number	MDU1512
Manufacturer	MagnaChip
File Size	724.40 KB
Description	N-Channel Trench MOSFET
Datasheet	MDU1512 Datasheet

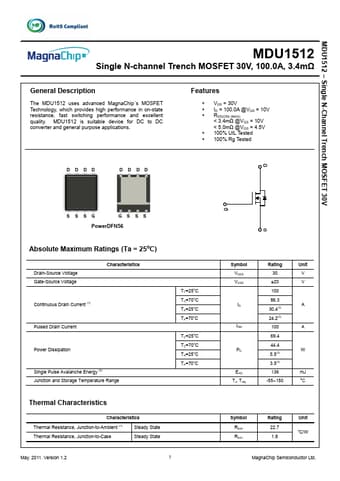

Additional preview pages of the MDU1512 datasheet.

Product details

Description

The MDU1512 uses advanced MagnaChip’s MOSFET Technology, which provides high performance in on-state resistance, fast switching performance and excellent quality.

Features

VDS = 30V ID = 100.0A @VGS = 10V RDS(ON) (MAX) < 3.4mΩ @VGS = 10V < 5.0mΩ @VGS = 4.5V 100% UIL Tested 100% Rg Tested DD DD DD DD D S SSG GS SS PowerDFN56 Absolute Maximum Ratings (Ta = 25oC) Drain-Source Voltage Gate-Source Voltage Characteristics Continuous Drain Current (1) Pulsed Drain Current Power Dissipation Single Pulse Avalanche Energy (2) Junction and Storage Temperature Range TC=25oC TC=70oC TA=25oC TA=70oC TC=25oC TC=70oC TA=25oC TA=70oC Thermal Characteristics Characte.
