MDU1511 - Single N-channel Trench MOSFET

Product Overview

MagnaChip

Datasheet Details

Part number	MDU1511
Manufacturer	MagnaChip
File Size	962.35 KB
Description	Single N-channel Trench MOSFET
Datasheet	MDU1511 Datasheet
Additional preview pages of the MDU1511 datasheet.

Product details

Description

The MDU1511 uses advanced MagnaChip’s MOSFET Technology, which provides high performance in on-state resistance, fast switching performance and excellent quality.

Features

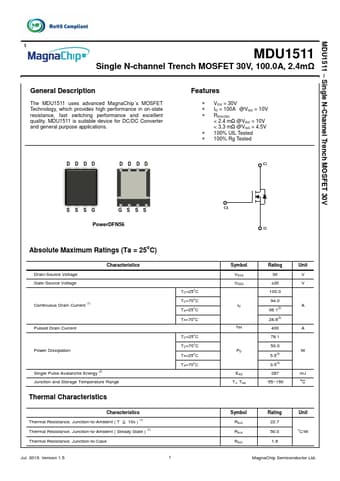

 VDS = 30V  ID = 100A @VGS = 10V  RDS(ON) < 2.4 mΩ @VGS = 10V < 3.3 mΩ @VGS = 4.5V  100% UIL Tested  100% Rg Tested DD DD DD DD D S SSG GS SS PowerDFN56 Absolute Maximum Ratings (Ta = 25oC) Drain-Source Voltage Gate-Source Voltage Characteristics Continuous Drain Current (1) Pulsed Drain Current Power Dissipation Single Pulse Avalanche Energy (2) Junction and Storage Temperature Range Thermal Characteristics Characteristics Thermal Resistance, Junction-to-Ambient ( T ≤ 1.
