60R580P - N-channel MOSFET

MagnaChip

📥 Download Datasheet

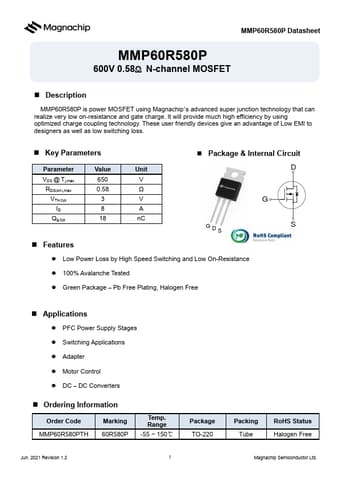

60R580P Datasheet Preview — Preview of 60R580P PDF

Datasheet Details

Part number	60R580P
Manufacturer	MagnaChip
File Size	683.19 KB
Description	N-channel MOSFET
Datasheet	60R580P-MagnaChip.pdf

60R580P Product details

Description

MMP60R580P is power MOSFET using Magnachip’s advanced super junction technology that can realize very low on-resistance and gate charge. Key Parameters Package & Internal Circuit Parameter VDS @ Tj,max RDS(on),max VTH,typ ID Qg,typ Value 650 0.58 3 8 18 Unit V Ω V A nC GDS D G S

Features

>.
Low Power Loss by High Speed Switching and Low On-Resistance.
100% Avalanche Tested.
Green Package.
Pb Free Plating, Halogen Free.
