60R360P - N-channel MOSFET

Description

MMP60R360P is power MOSFET using magnachip’s advanced super junction technology that can realize very low on-resistance and gate charge.

It will provide much high efficiency by using optimized charge coupling technology.

Features

  • Low Power Loss by High Speed Switching and Low On-Resistance.
  • 100% Avalanche Tested.
  • Green Package.
  • Pb Free Plating, Halogen Free.

📥 Download Datasheet

Datasheet Details

Part number 60R360P
Manufacturer MagnaChip
File Size 1.05 MB
Description N-channel MOSFET
Datasheet download datasheet 60R360P Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
60R300 Radial Leaded PTC Littelfuse
60R300X Resettable PTC Littelfuse
60R330M 600V Super-Junction Power MOSFET Unigroup
60R375 Radial Leaded PTC Littelfuse
60R375X Resettable PTC Littelfuse

Other Datasheets by MagnaChip

Part Number Description
60R190P N-channel MOSFET
60R580P N-channel MOSFET
60R580QS N-channel MOSFET
60R750P N-channel MOSFET
60R900P MMD60R900P

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

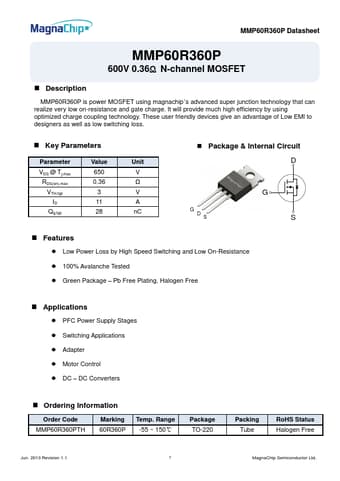

MMP60R360P Datasheet MMP60R360P 600V 0.36Ω N-channel MOSFET  Description MMP60R360P is power MOSFET using magnachip’s advanced super junction technology that can realize very low on-resistance and gate charge. It will provide much high efficiency by using optimized charge coupling technology. These user friendly devices give an advantage of Low EMI to designers as well as low switching loss.  Key Parameters Parameter VDS @ Tj,max RDS(on),max VTH,typ ID Qg,typ Value 650 0.
