MT1401BT, MT1401 - Hall-Effect Magnetic Position Sensors

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: MT1401BT, MT1401. Please refer to the document for exact specifications by model.

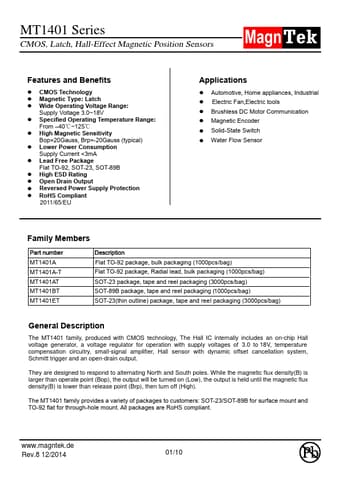

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number MT1401BT, MT1401
Manufacturer MagnTek
File Size 1.02 MB
Description Hall-Effect Magnetic Position Sensors
Datasheet download datasheet MT1401-MagnTek.pdf
Note This datasheet PDF includes multiple part numbers: MT1401BT, MT1401.
Please refer to the document for exact specifications by model.

MT1401BT Product details

Description

Flat TO-92 package, bulk packaging (1000pcs/bag) Flat TO-92 package, Radial lead, bulk packaging (1000pcs/bag) SOT-23 package, tape and reel packaging (3000pcs/bag) SOT-89B package, tape and reel packaging (1000pcs/bag) SOT-23(thin outline) package, tape and reel packaging (3000pcs/bag) General Description The MT1401 family, produced with CMOS technology, The Hall IC internally includes an on-chip Hall voltage generator, a voltage regulator for operation with supply voltages of 3.0 to 18V, temp

Features
