MT1401 - Hall-Effect Magnetic Position Sensors

MagnTek

📥 Download Datasheet

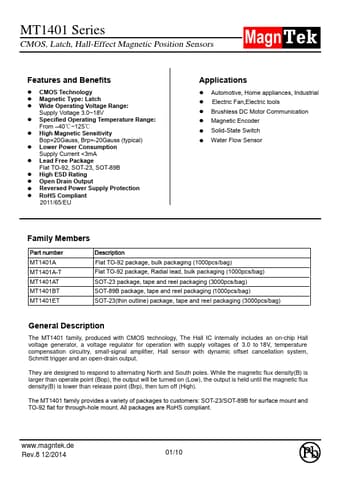

MT1401 Datasheet Preview — Preview of MT1401 PDF

Datasheet Details

Part number	MT1401
Manufacturer	MagnTek
File Size	1.02 MB
Description	Hall-Effect Magnetic Position Sensors
Datasheet	MT1401-MagnTek.pdf

MT1401 Product details

Description

Flat TO-92 package, bulk packaging (1000pcs/bag) Flat TO-92 package, Radial lead, bulk packaging (1000pcs/bag) SOT-23 package, tape and reel packaging (3000pcs/bag) SOT-89B package, tape and reel packaging (1000pcs/bag) SOT-23(thin outline) package, tape and reel packaging (3000pcs/bag) General Description The MT1401 family, produced with CMOS technology, The Hall IC internally includes an on-chip Hall voltage generator, a voltage regulator for operation with supply voltages of 3.0 to 18V, temp

Features

CMOS Technology Magnetic Type: Latch Wide Operating Voltage Range: Supply Voltage 3.0~18V ℃ ℃Specified Operating Temperature Range: From.
40 ~125 High Magnetic Sensitivity Bop=20Gauss, Brp=-20Gauss (typical) Lower Power Consumption Supply Current.
