MX26LV400 - 4M-BIT [512Kx8/256Kx16] CMOS SINGLE VOLTAGE 3V ONLY BOOT SECTOR HIGH SPEED eLiteFlashTM MEMORY

Macronix International

The MX26LV400 by Macronix International is a 4M-BIT [512Kx8/256Kx16] CMOS SINGLE VOLTAGE 3V ONLY BOOT SECTOR HIGH SPEED eLiteFlashTM MEMORY. Below is the official datasheet preview.

📥 Download Datasheet

MX26LV400 4M-BIT [512Kx8/256Kx16] CMOS SINGLE VOLTAGE 3V ONLY BOOT SECTOR HIGH SPEED eLiteFlashTM MEMORY by Macronix International - Datasheet Preview — Official preview page of the **MX26LV400** 4M-BIT [512Kx8/256Kx16] CMOS SINGLE VOLTAGE 3V ONLY BOOT SECTOR HIGH SPEED eLiteFlashTM MEMORY datasheet (Macronix International).

Datasheet Details

Part number	MX26LV400
Manufacturer	Macronix International
File Size	619.53 KB
Description	4M-BIT [512Kx8/256Kx16] CMOS SINGLE VOLTAGE 3V ONLY BOOT SECTOR HIGH SPEED eLiteFlashTM MEMORY
Datasheet	MX26LV400_MacronixInternational.pdf

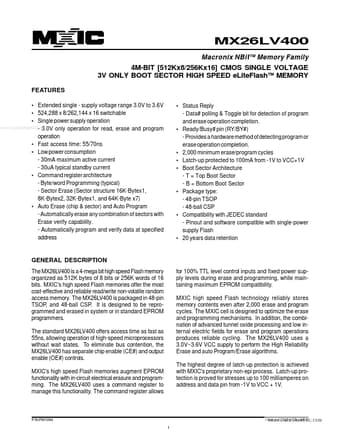

Additional preview pages of the MX26LV400 datasheet.

MX26LV400 Product details

Description

The MX26LV400 is a 4-mega bit high speed Flash memory organized as 512K bytes of 8 bits or 256K words of 16 bits.

Features

Extended single - supply voltage range 3.0V to 3.6V.
524,288 x 8/262,144 x 16 switchable.
Single power supply operation www. DataSheet4U. com - 3.0V only operation for read, erase and program operation.
Fast access time: 55/70ns.
Low power consumption - 30mA maximum active current - 30uA typical standby current.
Command register architecture - Byte/word Programming (typical) - Sector Erase (Sector structure 16K-Bytex1, 8K-Bytex2, 32K-Bytex1, a.
