MX26LV160AT, MX26LV160AB - 16M-BIT [2Mx8/1Mx16] CMOS SINGLE VOLTAGE 3V ONLY BOOT SECTOR HIGH SPEED eLiteFlashTM MEMORY

Macronix International

The MX26LV160AT by Macronix International is a 16M-BIT [2Mx8/1Mx16] CMOS SINGLE VOLTAGE 3V ONLY BOOT SECTOR HIGH SPEED eLiteFlashTM MEMORY. Below is the official datasheet preview.

📥 Download Datasheet

MX26LV160AT 16M-BIT [2Mx8/1Mx16] CMOS SINGLE VOLTAGE 3V ONLY BOOT SECTOR HIGH SPEED eLiteFlashTM MEMORY by Macronix International - Datasheet Preview — Official preview page of the **MX26LV160AT** 16M-BIT [2Mx8/1Mx16] CMOS SINGLE VOLTAGE 3V ONLY BOOT SECTOR HIGH SPEED eLiteFlashTM MEMORY datasheet (Macronix International).

Datasheet Details

Part number	MX26LV160AT, MX26LV160AB
Manufacturer	Macronix International
File Size	824.57 KB
Description	16M-BIT [2Mx8/1Mx16] CMOS SINGLE VOLTAGE 3V ONLY BOOT SECTOR HIGH SPEED eLiteFlashTM MEMORY
Datasheet	MX26LV160AB_MacronixInternational.pdf
Note	This datasheet PDF includes multiple part numbers: MX26LV160AT, MX26LV160AB. Please refer to the document for exact specifications by model.

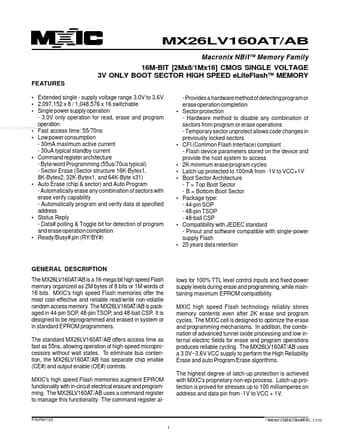

Additional preview pages of the MX26LV160AT datasheet.

MX26LV160AT Product details

Description

The MX26LV160AT/AB is a 16-mega bit high speed Flash memory organized as 2M bytes of 8 bits or 1M words of 16 bits.

Features

Extended single - supply voltage range 3.0V to 3.6V.
2,097,152 x 8 / 1,048,576 x 16 switchable.
Single power supply operation - 3.0V only operation for read, erase and program operation www. DataSheet4U. com.
Fast access time: 55/70ns.
Low power consumption - 30mA maximum active current - 30uA typical standby current.
Command register architecture - Byte/word Programming (55us/70us typical) - Sector Erase (Sector structure 16K-Bytex1, 8K-Bytex.
