MX803A, MX803A-MX Audio Signaling Processor

MX803A Description

DATA BULLETIN MX803A Audio Signaling Processor .

MX803A Features

* Full Duplex Audio Signaling Processor Single Tone Selective Call systems
* Tone Decoder with programmable NOTONE timer.
* Two Individual tone encoders and a programmable TX Period Timer.
* Low Power CMOS Device
* On-Chip programmable amplifier.
* C-B

MX803A Applications

* Signaling Systems supported SelCall (CCIR, EEA, ZVEI I / II /III) 2-Tone SelCall DTMF Encode
* Inband Tone Signaling capability for LMR and other Radio Systems. SIGNAL INPUT BIAS (RX) AUDIO IN DIGITAL NOISE FILTER 1 RX FILTER SWITCH DIGITAL NOISE FILTER 2 QUALITY METER GATE TI

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: MX803A, MX803A-MX. Please refer to the document for exact specifications by model.

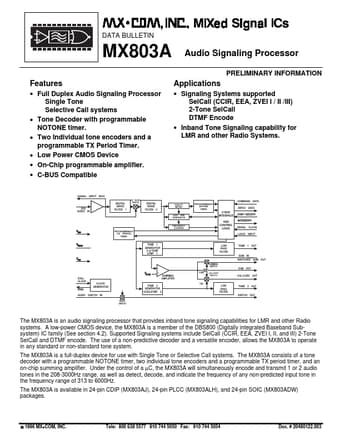

datasheet Preview Page 2 datasheet Preview Page 3
