MT4600 - Dual N & P-Channel PowerTrench MOSFET

Product Overview

MT Semiconductor

Datasheet Details

Part number	MT4600
Manufacturer	MT Semiconductor
File Size	496.26 KB
Description	Dual N & P-Channel PowerTrench MOSFET
Datasheet	MT4600 Datasheet

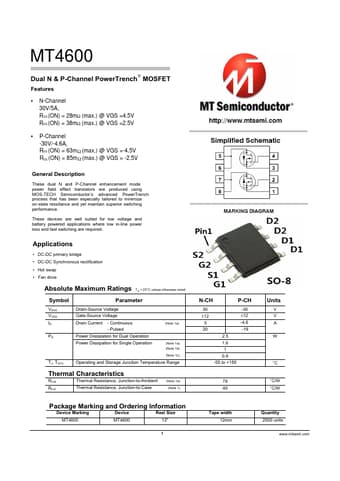

Additional preview pages of the MT4600 datasheet.

Product details

Description

These dual N and P-Channel enhancement mode power field effect transistors are produced using MOS-TECH Semiconductor’s advanced PowerTrench process that has been especially tailored to minimize on-state ressitance and yet maintain superior switching performance.

Features

N-Channel 30V/5A, RDS (ON) = 28mΩ (max. ) @ VGS =4.5V RDS (ON) = 38mΩ (max. ) @ VGS =2.5V.
P-Channel -30V/-4.6A, RDS (ON) = 63mΩ (max. ) @ VGS =-4.5V RDS (ON) = 85mΩ (max. ) @ VGS = -2.5V General.
