MSK103 - ULTRA HIGH VOLTAGE DUAL OPERATIONAL AMPLIFIER

The MSK103 by MSK is a ULTRA HIGH VOLTAGE DUAL OPERATIONAL AMPLIFIER. Below is the official datasheet preview.

📥 Download Datasheet

Official preview page of the MSK103 ULTRA HIGH VOLTAGE DUAL OPERATIONAL AMPLIFIER datasheet (MSK).

Datasheet Details

Part number MSK103
Manufacturer MSK
File Size 405.70 KB
Description ULTRA HIGH VOLTAGE DUAL OPERATIONAL AMPLIFIER
Datasheet download datasheet MSK103_MSK.pdf
Additional preview pages of the MSK103 datasheet.

MSK103 Product details

Description

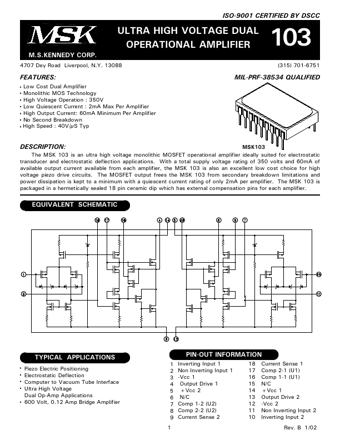

EQUIVALENT SCHEMATIC TYPICAL APPLICATIONS Piezo Electric Positioning Electrostatic Deflection Computer to Vacuum Tube Interface Ultra High Voltage Dual Op-Amp Applications 600 Volt, 0.12 Amp Bridge Amplifier PIN-OUT INFORMATION 1 2 3 4 5 6 7 8 9 1 Inverting Input 1 Non Inverting Input 1 -Vcc 1 Output Drive 1 +Vcc 2 N/C Comp 1-2 (U2) Comp 2-2 (U2) Current Sense 2 18 17 16 15 14 13 12 11 10 Current Sense 1 Comp 2-1 (U1) Comp 1-1 (U1) N/C +Vcc 1 Output Drive 2 -Vcc 2 Non Inverting Input 2 Inver
