MPQ7220GR-AEC1 - Max 100mA/Ch Boost LED Driver

Product Overview

MPS

📥 Download Datasheet

MPQ7220GR-AEC1 Max 100mA/Ch Boost LED Driver by MPS - Datasheet Preview — Datasheet preview – MPQ7220GR-AEC1

Datasheet Details

Part number	MPQ7220GR-AEC1
Manufacturer	MPS
File Size	2.89 MB
Description	Max 100mA/Ch Boost LED Driver
Datasheet	MPQ7220GR-AEC1 Datasheet
Note	This datasheet PDF includes multiple part numbers: MPQ7220GR-AEC1, MPQ7220. Please refer to the document for exact specifications by model.

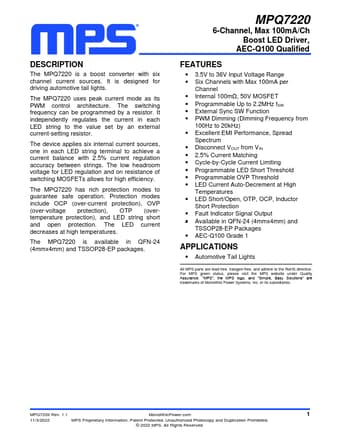

Additional preview pages of the MPQ7220GR-AEC1 datasheet.

Product details

Description

The MPQ7220 is a boost converter with six channel current sources.

Features

3.5V to 36V Input Voltage Range.
Six Channels with Max 100mA per Channel.
Internal 100mΩ, 50V MOSFET.
Programmable Up to 2.2MHz fSW.
External Sync SW Function.
PWM Dimming (Dimming Frequency from 100Hz to 20kHz).
Excellent EMI Performance, Spread Spectrum.
Disconnect VOUT from VIN.
2.5% Current Matching.
Cycle-by-Cycle Current Limiting.
Programmable LED Short Threshold.
Programmable OVP T.
