MPQ7220 - Max 100mA/Ch Boost LED Driver

Product Overview

MPS

📥 Download Datasheet

MPQ7220 Max 100mA/Ch Boost LED Driver by MPS - Datasheet Preview — Datasheet preview – MPQ7220

Datasheet Details

Part number	MPQ7220
Manufacturer	MPS
File Size	2.89 MB
Description	Max 100mA/Ch Boost LED Driver
Datasheet	MPQ7220 Datasheet

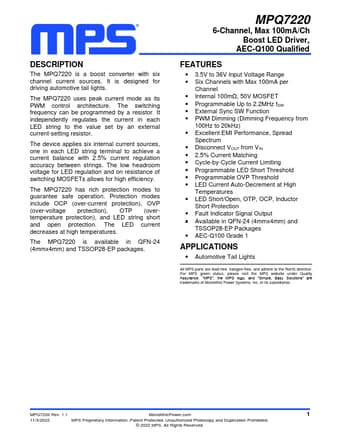

Additional preview pages of the MPQ7220 datasheet.

Product details

Description

The MPQ7220 is a boost converter with six channel current sources.

Features

3.5V to 36V Input Voltage Range.
Six Channels with Max 100mA per Channel.
Internal 100mΩ, 50V MOSFET.
Programmable Up to 2.2MHz fSW.
External Sync SW Function.
PWM Dimming (Dimming Frequency from 100Hz to 20kHz).
Excellent EMI Performance, Spread Spectrum.
Disconnect VOUT from VIN.
2.5% Current Matching.
Cycle-by-Cycle Current Limiting.
Programmable LED Short Threshold.
Programmable OVP T.
